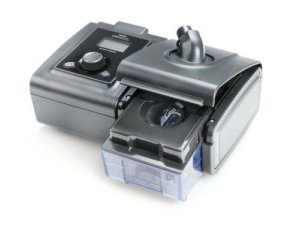

Philips Respironics BiPAP – AVAPS (Average Volume Assured Pressure Support)
When a therapy device takes patient care to the next level, it’s an important advancement. When it can also recognize changing patient needs and then automatically make adjustments, it’s revolutionary. Philips Respironics BiPAP AVAPS noninvasive ventilator has been developed to help clinicians provide better, more efficient care for patients including children as young as seven years of age and who weigh more than 40 pounds.
Improved patient care, automatic adjustments to meet changing patient needs, plus simplified patient management. And it all comes together in a new lighter, quieter, and easy-to-use device that clinicians and patients are sure to appreciate.
Benefits (Exclusive benefits for Patients and Clinicians)
- AVAPS (average volume assured pressure support) automatically adapts to disease progression and changing patient needs
- Maintains optimal patient comfort without compromising patient care and efficacy
- Improves ventilation efficacy*
- Simplifies the titration process
Which patients benefit from AVAPS?
Patients who develop chronic hypoventilation may find BiPAP AVAPS a more comfortable and effective NIV therapy. For example, neuromuscular, COPD, and obesity hypoventilation patients are strong candidates for BiPAP AVAPS.
|Size :||18 cm x 14 cm x 10 cm (7″ L x 5.5″ W x 4″ H)|
|Weight :||Approximately 1.36 kg (3 lbs.)|
|Modes :||CPAP, S, ST, PC, T|
|Bi-Flex :||Available on S mode|
|Timed inspiration :||0.5 to 3.0 seconds|
|IPAP :||4 to 25 cm H2O|
|EPAP :||4 to 25 cm H2O|
|CPAP :||4 to 20 cm H2O|
|Ramp :||0 to 45 minutes|
|Breath rate :||0 to 30 BPM|
|Mode availability :||AVAPS available on S, ST, PC, and T modes|
|Target tidal volume :||200 to 1500 ml|
|IPAPmin :||From EPAP to IPAPmax|
|IPAPmax :||From IPAPmin to 25 cm H2O|
Patient Alarms Available
|Patient Disconnect, Apnea, Low Minute Ventilation, Low Tidal Volume (AVAPS modes only)|
|Temperature||5° C to 35° C
(41° F to 95° F)
|-20° C to 60° C
(-4° F to 140° F)
|Relative humidity||15 to 95%
|15 to 95%
|Atmospheric pressure||101 kPa to 77 kPa
(0-2286 m / 0-7500 ft)
- < 30 dBA typical at 10 cm H20 pressure
- AC voltage source 100 to 240 VAC, 50/60 Hz, 2.1 A
- DC power 12 VDC, 5.0 A
*NOTE: The Humidifier is an optional accessory, It is not included in the contents of this package.
