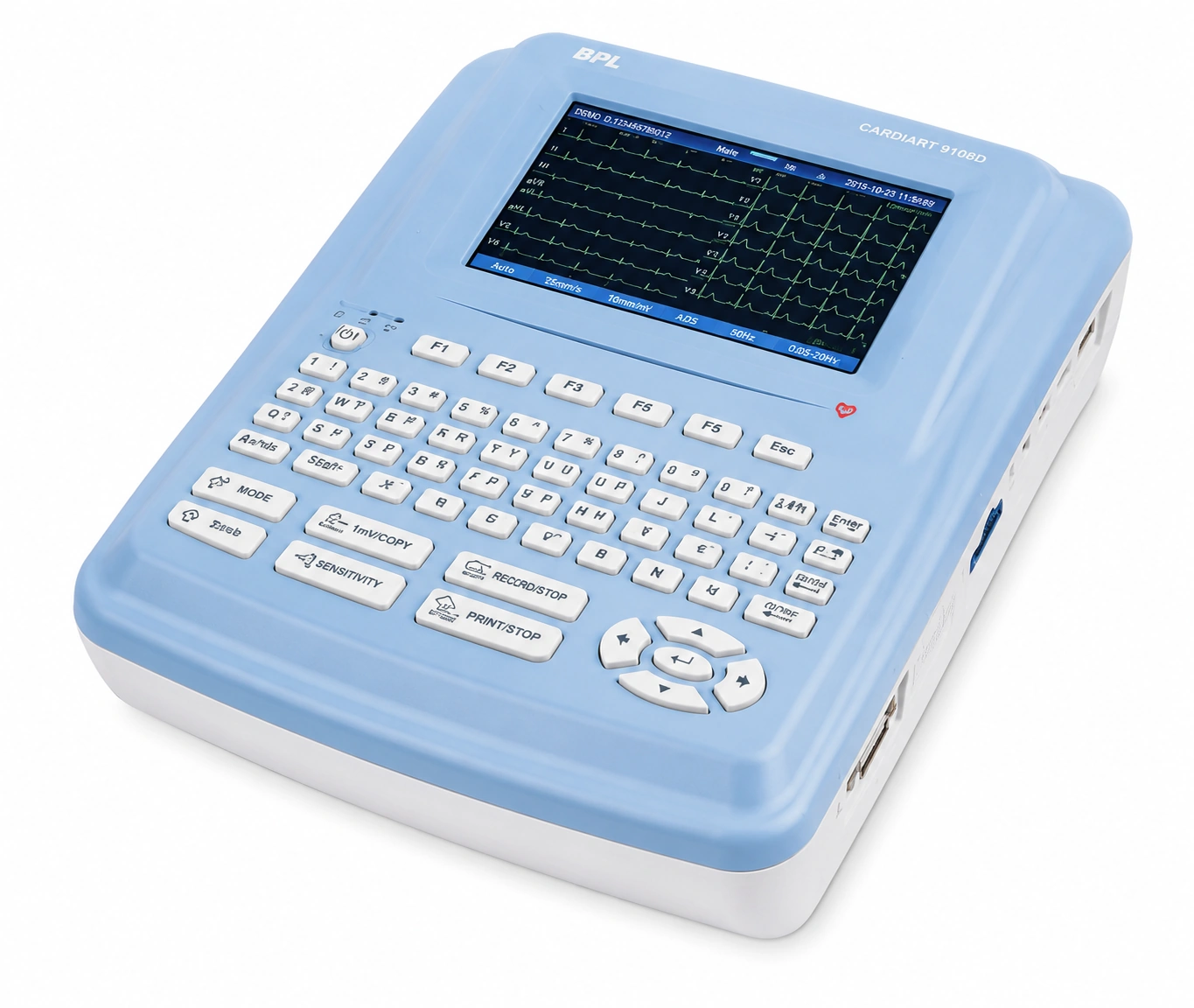

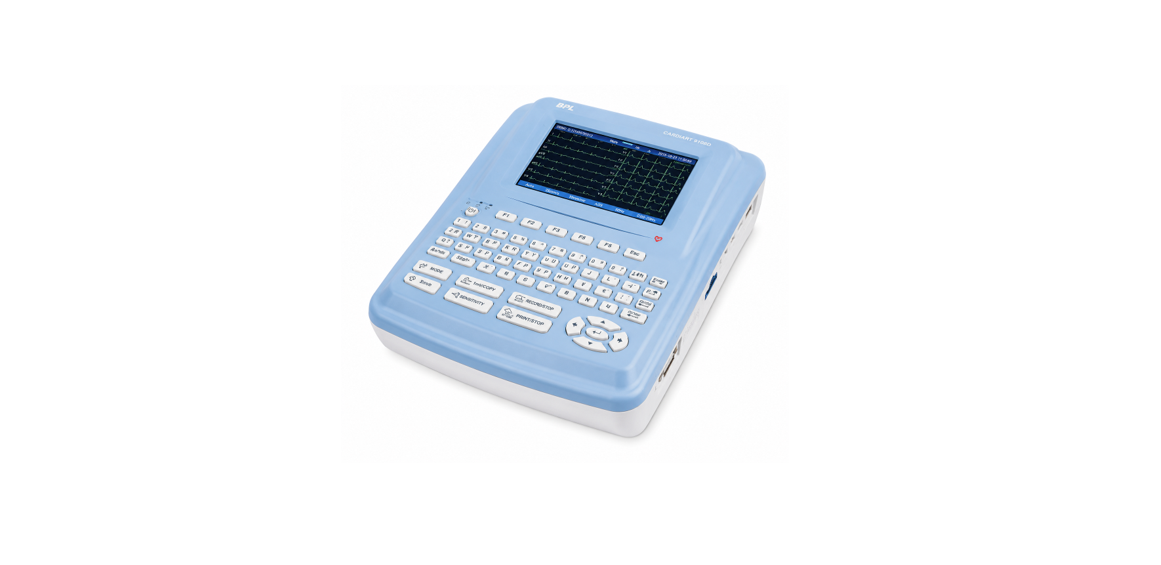

BPL Cardiart 9108D 12-Channel ECG Machine
The BPL Cardiart 9108D 12-Channel ECG Machine is a premium electrocardiograph designed to deliver highly accurate cardiac diagnostics for hospitals, cardiac care units, physician clinics, diagnostic centres, emergency departments, and healthcare institutions. Developed by BPL Medical Technologies, this advanced ECG system combines simultaneous 12-lead ECG acquisition with the world-renowned Glasgow ECG Interpretation Algorithm, enabling healthcare professionals to perform fast and reliable cardiac assessments with greater diagnostic confidence.
Equipped with a 7-inch high-resolution color LCD display with an optional touchscreen interface, the Cardiart 9108D provides crystal-clear visualization of ECG waveforms, patient information, and measurement parameters. Its intuitive user interface and QWERTY keyboard simplify workflow while reducing examination time in busy clinical environments.
The machine features 12-channel ECG recording, automatic ECG parameter measurement, advanced interpretation, a 24-bit A/D converter with 16,000 Hz sampling frequency, and superior digital signal processing for outstanding ECG trace quality. Internal memory stores up to 800 ECG records, while USB and SD card support provide virtually unlimited storage expansion.
Designed for modern hospitals, the Cardiart 9108D supports PDF report generation, optional SCP/FDA-XML/DICOM export, Ethernet connectivity, USB printer support, optional Wi-Fi, barcode scanner compatibility, and optional EMR/PACS integration using HL7 protocol.
Its high-performance rechargeable lithium-ion battery ensures uninterrupted operation during bedside examinations, emergency care, and patient transportation, making it an ideal solution for demanding clinical environments.
Available with expert consultation, after-sales support, installation assistance, and fast delivery across Delhi, Noida, Gurgaon, Ghaziabad, Faridabad, Greater Noida, and all NCR locations.
Key Features
- Advanced 12-channel ECG recording
- Simultaneous 12-lead ECG acquisition
- 7-inch high-resolution color LCD display
- Optional touchscreen interface
- Glasgow ECG Interpretation Algorithm
- Automatic ECG measurement and interpretation
- 24-bit high-resolution A/D converter
- 16,000 Hz ECG sampling frequency
- Superior ECG trace quality
- Built-in high-resolution thermal printer
- Internal storage for up to 800 ECG records
- USB and SD card storage expansion
- PDF report generation with optional SCP, FDA-XML & DICOM export
- Ethernet, USB, FTP, optional Wi-Fi & HL7 connectivity
- Rechargeable high-performance Li-ion battery
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BPL Cardiart 9108D 12-Channel ECG Machine |
| Brand | BPL Medical Technologies |
| Machine Type | 12-Channel ECG Machine |
| Display | 7-inch High-Resolution Color LCD Display |
| ECG Acquisition | Simultaneous 12-Lead Acquisition |
| ECG Interpretation | Advanced Glasgow ECG Interpretation Algorithm |
| A/D Converter | 24-bit High Resolution |
| Sampling Frequency | 16,000 Hz |
| Bandwidth | 0.01 Hz – 300 Hz |
| Internal Memory | Stores up to 800 ECG Records |
| Connectivity | USB, SD Card, Ethernet, FTP, Optional Wi-Fi |
| Battery | High-Performance Rechargeable Li-ion Battery |
| Suitable For | Hospitals, Cardiology Departments, Diagnostic Centres, Emergency Care & Physician Clinics |
Package Contents
- BPL Cardiart 9108D 12-Channel ECG Machine
- Patient Cable
- Chest Electrodes (6 Nos.)
- Limb Electrodes (4 Nos.)
- Power Cord
- Thermal ECG Paper
- ECG Gel Bottle
- User Manual
- Warranty Card
Warranty Information
- Machine Warranty: 1-Year Manufacturer Warranty
- Warranty covers manufacturing defects under normal operating conditions.
- Physical damage, accidental damage, liquid damage, misuse, and unauthorized repairs are not covered.
- Please retain the original invoice and warranty documents for future warranty claims.
Benefits of BPL Cardiart 9108D 12-Channel ECG Machine
- Provides highly accurate 12-channel ECG recording with simultaneous 12-lead acquisition.
- Advanced Glasgow ECG Interpretation Algorithm assists clinicians in faster and more reliable diagnosis.
- Large 7-inch high-resolution color LCD display offers clear ECG waveform visualization.
- 24-bit A/D converter with 16,000 Hz sampling frequency ensures outstanding ECG signal quality.
- Automatic ECG measurement and interpretation improve workflow efficiency.
- Built-in thermal printer delivers instant, high-quality ECG reports.
- Internal memory stores up to 800 ECG records for convenient patient data management.
- USB, SD Card, Ethernet, and optional Wi-Fi connectivity simplify report sharing and hospital integration.
- Rechargeable lithium-ion battery enables uninterrupted operation during bedside examinations and emergencies.
- Supports PDF report generation with optional SCP, FDA-XML, and DICOM export.
- Suitable for hospitals, cardiac care units, physician clinics, emergency departments, and diagnostic centres.
- User-friendly interface reduces examination time and improves clinical productivity.
- Portable design allows convenient use in multiple healthcare settings.
- Reliable BPL Medical Technologies quality ensures dependable long-term performance.
- Designed for routine cardiac screening as well as advanced cardiac diagnostics.
Why Buy BPL Cardiart 9108D 12-Channel ECG Machine from Respikart?
Respikart provides genuine BPL Medical Technologies ECG machines with expert consultation, after-sales support, installation assistance, and fast delivery throughout Delhi NCR.
Whether you require a premium 12-channel ECG machine for hospitals, cardiac care units, physician clinics, emergency departments, or diagnostic centres, the BPL Cardiart 9108D 12-Channel ECG Machine delivers advanced ECG interpretation, exceptional waveform quality, and dependable clinical performance.
Our experienced team helps doctors, hospitals, and healthcare professionals choose the right ECG solution according to their clinical requirements while providing complete support before and after purchase.
Need a 12-Channel ECG Machine?
Get expert consultation, same-day delivery, installation assistance, and after-sales support across Delhi, Noida, Gurgaon, Ghaziabad, Faridabad, Greater Noida, and NCR regions.
Frequently Asked Questions
What is the BPL Cardiart 9108D 12-Channel ECG Machine used for?
The BPL Cardiart 9108D is designed for recording, analyzing, interpreting, and printing 12-lead electrocardiograms for accurate diagnosis of cardiac conditions in hospitals, cardiac care units, clinics, and diagnostic centres.
Does the machine record all 12 ECG leads simultaneously?
Yes. The machine supports simultaneous 12-lead ECG acquisition with 12-channel recording for comprehensive cardiac assessment.
What is the Glasgow ECG Interpretation Algorithm?
The Glasgow ECG Interpretation Algorithm is an internationally recognized diagnostic system that provides highly accurate automated ECG interpretation to assist healthcare professionals in cardiac diagnosis.
How many ECG reports can be stored?
The internal memory can store up to 800 ECG reports, with additional storage available through USB and SD card support.
Does the machine include a built-in printer?
Yes. It features a high-resolution thermal printer for immediate ECG report printing.
Can ECG reports be exported digitally?
Yes. The machine supports PDF report generation and optional SCP, FDA-XML, DICOM, Ethernet, FTP, and Wi-Fi connectivity for digital report management.
What warranty is included?
The BPL Cardiart 9108D 12-Channel ECG Machine includes a 1-Year Manufacturer Warranty covering manufacturing defects under normal operating conditions.
Do you provide delivery across Delhi NCR?
Yes. We offer fast delivery, installation assistance, and after-sales support across Delhi, Noida, Gurgaon, Ghaziabad, Faridabad, Greater Noida, and nearby NCR locations.
What accessories are included with the ECG machine?
The standard package generally includes the ECG machine, patient cable, chest electrodes, limb electrodes, ECG paper, ECG gel, power cord, user manual, and warranty card.
How can I check pricing and availability?
Call 9810061827 for the latest pricing, offers, and stock availability.
