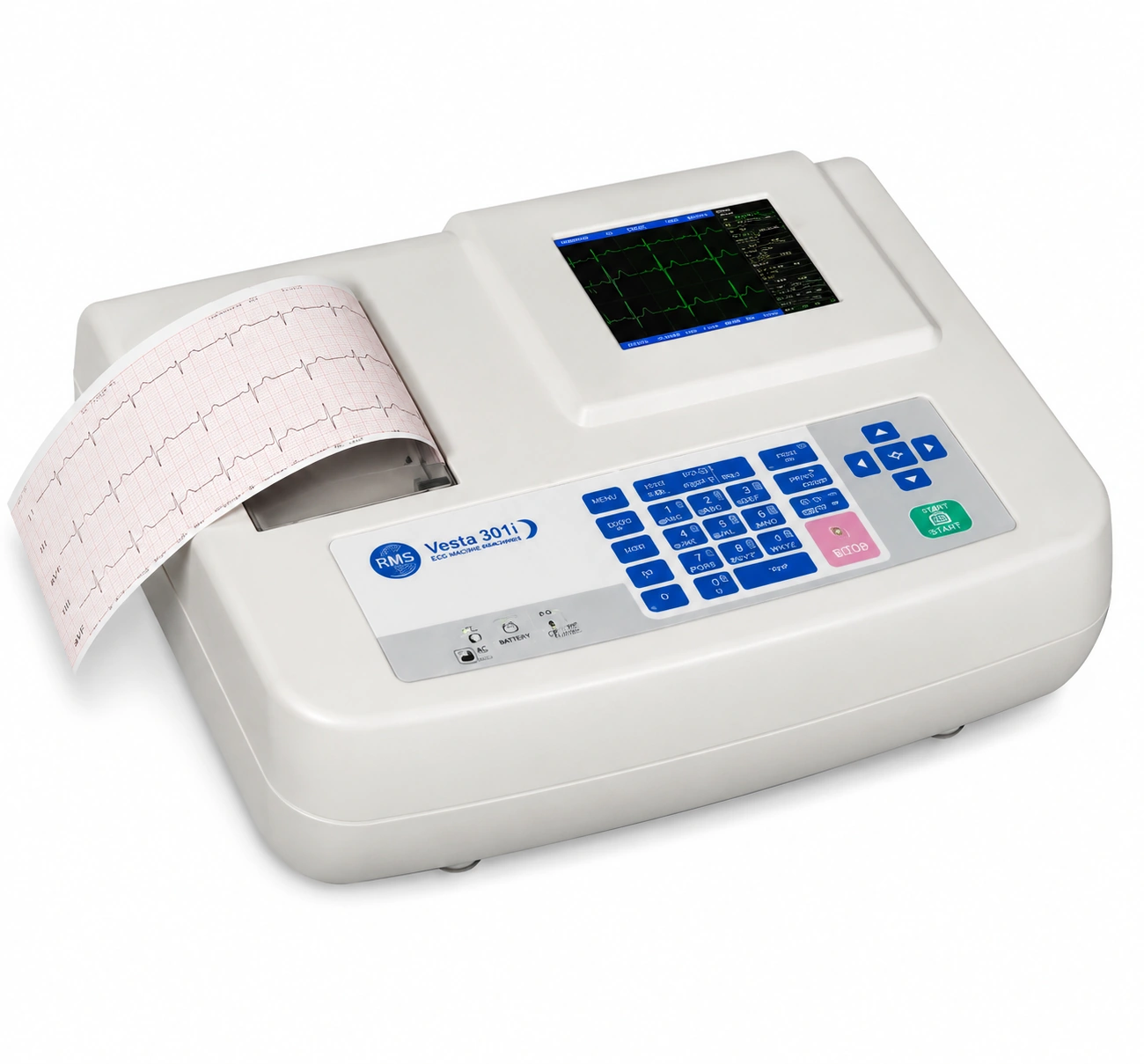

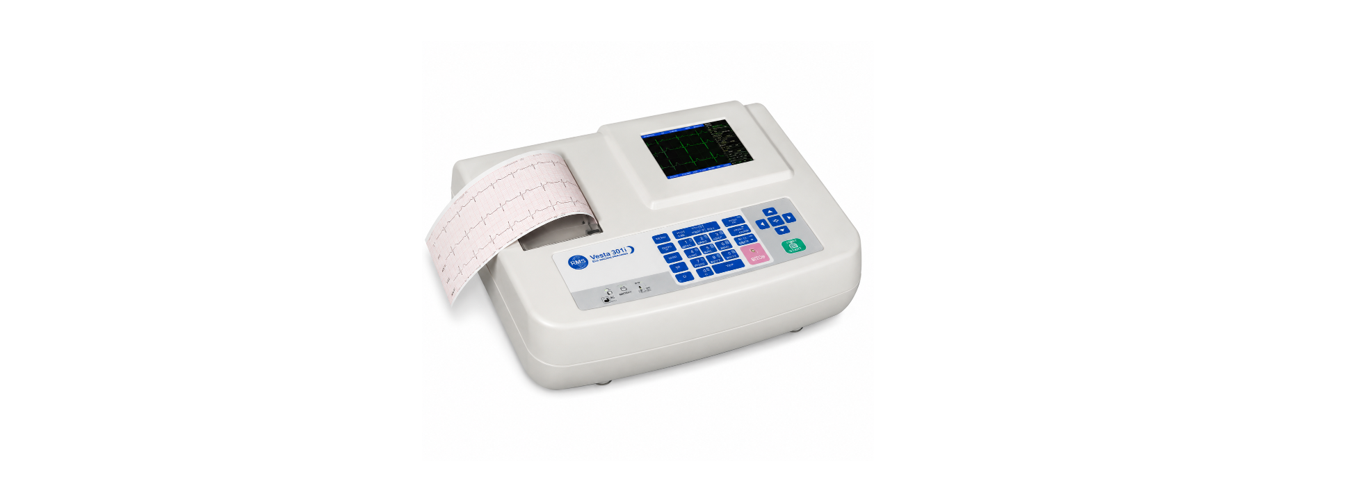

RMS is the known manufacturer of cardiology equipment in India, having full range of ECG machines which include single-channel ECG, 3 channel ECG and 12 channel ECG machines. RMS manufacture high-quality ECG devices at an affordable price. RMS portable ECG machines have some of the unique features having TFT color, USB A4 direct printing, USB storage at a very affordable price. RMS also manufactures PC-based ECG devices that can be used with a laptop for tele-camping purposes.
Features:
- Simultaneous acquisition of all 12 leads
- High TFT color display for the on-screen preview of ECG waveform
- Full alphanumeric keyboard for entering patient and clinical information
- Digital filter to eliminate baseline drift, AC&EMG interference
- Isolation protection against defibrillator
- Real-time clock for date & time indication
- Paper out indications
- Printing option: Rythm leads, medians, enlarge median, graphical axis and measurement & interpretation
- Internal ECG data storage of up to 20 patients
- Optional: USB, PC interface and Direct A4 printing
Product Specifications:
Type | Manual, Portable, Automatic |
Lead Selection | Standard 12 leads |
Application | Clinical, Hospital |
Brand | RMS |
Display | 3.5 inch (320 x 240 pixels) TFT color display |
Dimension | 288 X 238 X 85 mm |
Recording Mode | Thermal array Printer 8 dot/ mm (Vertical) |
Frequency Response | 0.05-50Hz (-3dB) |
Time Constant | 3.2s |
Weight | 1.8 kg |
Input Circuit | 50uA |
Power supply | 220-240V, 50Hz +_ 10% |
Battery | 11.1V/2600 mAh, Li-ion battery charging |
Charging time | 3 hours |
Communication interface | USB |
- ECG Machine
- Limb electrodes – 4
- Chest electrodes – 6
- Patient cable – 1
- Conducting tube jelly
- Earthing wire
- Fuse T 1.5 A
- Printing paper -80mm(Rolled)
- Power supply cable with adapter
Additional information
Weight | 1.8 kg |
---|---|
Dimensions | 28 × 23 × 8 cm |
