Philips Trilogy EVO (OBM)

Proven Performance



For use in dynamic environments

With expanded cross-functionality, Trilogy Evo offers features to treat chronic and critical patients in a variety of settings, such as sub-acute or chronic care environments, a patient’s home or during their activities. It’s designed specifically with durability in mind to protect it against damage during travel, such as during medical transport.



Long-lasting battery life

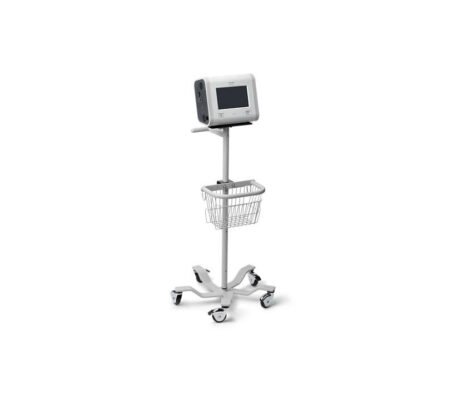

Ventilator-dependent patients are supported by internal and detachable batteries, now with 15-hour battery life. Compared to Trilogy 100’s six-hour battery, Trilogy Evo gives patients a new level of freedom and mobility. It’s ready to be mounted onto a roll-stand or a wheelchair, with a mountable, easy- to-use carry bag.



Meet your patients’ changing needs

Trilogy Evo provides noninvasive and invasive ventilator support with added sensitivity for a wide range of adult and pediatric patients. Volume and pressure modes, AVAPS-AE, SpO2 and EtCO2 monitoring and alarms of every parameter allow for adaptable care. Flexibility of circuits allows it to be used in a wide range of patients.



Technical Specifications

Alarms

Circuit Disconnection	OFF, 5 – 60 sec
Inspiratory Pressure	PEEP+1 to 89 cmH2O
Minute Ventilation	OFF, 0.2 – 30 L/min
Tidal Volume	OFF, 10 – 2000 ml
Apnea Interval	5 to 60 sec
Respiratory Rate	OFF, 1 – 90 BPM
No trigger	OFF; 0.5-15 min (ONLY in MPV)

Oxygen

High pressure	280 to 600 kPa (41 to 87 psi)
Low flow	0 to 30 l/min; maximum 10 psi

Controls

Tidal volume	35 – 2000 ml on Dual Limb and Active Flow circuits, 50 – 2000 ml on passive and active PAP circuits
AVAPS with passive circuit	PSV, S/T, and A/C-PC modes only
Pressure support/pressure control	0 to 60 cmH20
Rise time	0 to 6
Flow cycle sensitivity	10% – 90% of peak flow
Inspiratory time	0.3 – 5.0s
Flow pattern	Square, Ramp
EPAP/CPAP	3 to 25 cmH20
Inspiratory time min/max	0.3 to 3.0 sec
FiO2	21% – 100%
PEEP	0 – 35 cmH20 for active circuits 3 – 25 cmH20 for passive circuits
Breath rate	0 – 80 BPM
Flow trigger sensitivity	0.5 – 9 l/min
Backup ventilation	ON-OFF
IPAP	3 to 60 cmH20
Triggering and cycling	Off, AutoTrak, Sensitive, AutoTrak, and Flow Trigger

Ventilation Modes

A/C-PC	Assist control (pressure control)
SIMV-VC	Synchronized intermittent mandatory ventilation (volume control)
CPAP	Continuous positive airway pressure
S/T	Spontaneous/timed ventilation
A/C-VC	Assist control (volume control)
MPV-PC	Mouthpiece ventilation (pressure control)
MPV-VC	Mouthpiece ventilation (volume control)
SIMV-PC	Synchronized intermittent mandatory ventilation (pressure control)
PSV	Pressure support ventilation

Electrical

Internal and detachable Li-on batteries	15 hours’ nominal total run time per method in IEC 80601-2-72 (7.5 hours each battery)
Charge time for detachable and internal battery	from 0% to 80%: 2.5 hours; from 0% to 100%: 3.5 hours
DC input voltage	12/24V 6.5A
AC input voltage	100V – 240V, 50/60 Hz, 1.7 – 0.6A

Physical

Weight	5.2 kg
Screen dimensions	8”, 20.32 cm
Size	16.5 cm D x 28.6 cm W x 24.5 cm H 6.48” D x 11.25” W x 9.65” H

Measured and Displayed Patient Parameters

Dynamic resistance (Dyn R)	5 to 200 cmH2O/l/sec
Pulse rate with pulse oximeter accessory	18 to 321 beats per minute
Dynamic plateau pressure (Dyn Pplat)	0 to 90 cmH2O
Percentage spontaneous triggered breaths (%Spont Trig)	0 to 100%
FiO2 with FiO2 sensor	21% to 100%
Leak	0 to 200 l/min
Mean airway pressure	0 to 90 cmH2O
Peak inspiratory flow (PIF)	0 to 200 l/min
I:E ratio	9.9:1 to 1:9.9
Tidal volume (Vti or Vte)	0 to 2000 ml
Dynamic compliance (Dyn C)	1 to 100 ml/cmH2O
Peak inspiratory pressure (PIP)	0 to 90 cmH2O
Respiratory rate (RR)	0 to 90 BPM
Minute ventilation (MinVent)	0 to 30 l/min
Auto-PEEP	0 to 20 cmH2O
EtCO2 with CO2 accessory	0 to 150 mmHg
SpO2 with pulse oximeter accessory	0 to 100%
