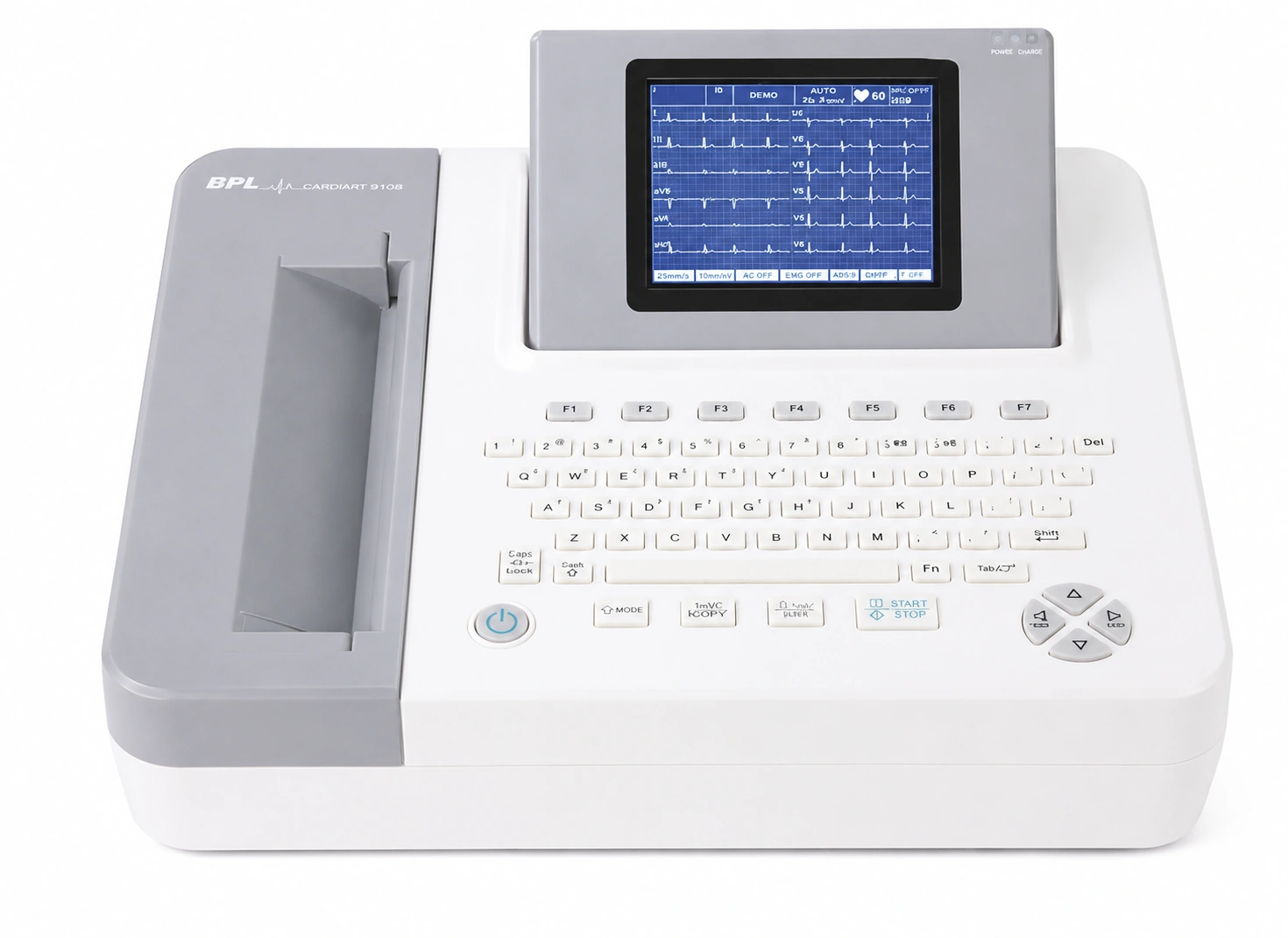

BPL Cardiart 9108 12-channel ECG

Cardiart 9108 is a 12-Channel ECG with Interpretation, it has QWERTY keyboard and foldable display. This device is easy to use, supports external USB printer, Multi-format reports export.

• Twelve Channel ECG Recording.
• 5.7-inch foldable LCD screen.
• Automatic Measurements and Interpretation.
• 24-bit A/D converter, 0.01-300Hz bandwidth, 16000Hz sampling frequency.
• Internal storage 800 ECGs and can be enlarged by USB.
• Li-ion rechargeable battery – 300 ECG’s.
• Report formats: PDF and optional SCP/FDA-XML/DICOM data export.
• Connectivity: FTP, Supports barcode scanner & USB Printer, optional Wi-Fi.
• Optional PC interface software allows to access EMR/PACs/GDT-based Systems (HL7 protocol).

  Specifications:

Display	320 x 240 dot single colour LCD
		Communication Interface	Ethernet, Rs232 USB
		Dimensions	420mm x 330mm x 105mm

Input Circuit	Floating input circuit protection from defibrillation pace makers
Lead	Standard 12 leads
Acquisition Mode	12 Leads Simultaneously
Safety Standards	IECI/CF

AC Mains	100V-240 VAC, 50Hz-60Hz, 70VAC
Battery	Built-in rechargeable 14.8 Li-Ion Battery
Battery Life	100 Patient recordings

Recorder	Thermal Printer
Record Paper	A4 Size Z fold or 210mm Roll
Manual	3, 6 and 12
Auto	Off 3×4, 3×4,+1R, 3×4+3R, 6×2, 6×2+1R, 6×2 Adjust, 12×1
Rhythm	Single lead and Three leads
R-R Mode Analysis	R-R Histogram & R-R Trend
Record Speed (mm/sec)	5, 10, 12.5, 25, 30, 50 (±3%)

Patient Cable	1 No
Chest Electrodes	6 No
Limb Electrodes	4 No
Power Cord	1 No
Cardi-Jelly Bottle	1 No
Paper Roll	1 No (Z Fold)
User Manual	1 No
