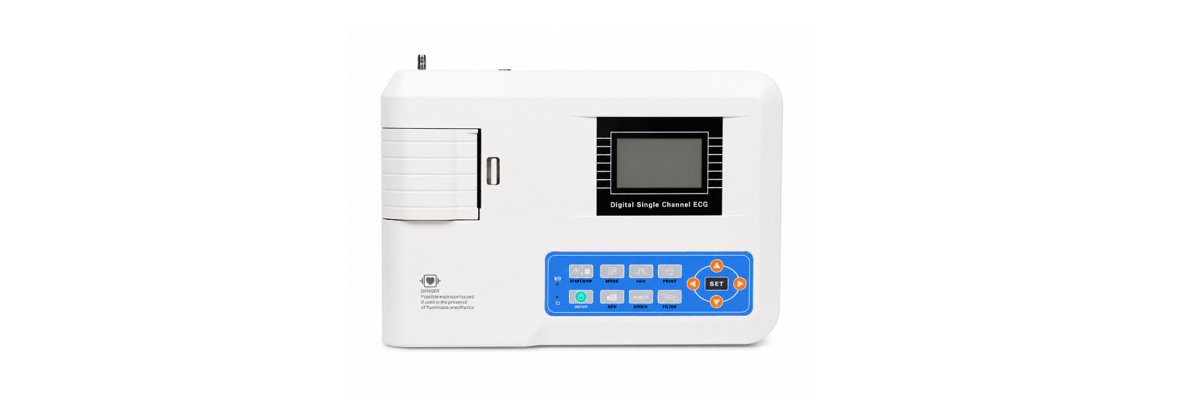

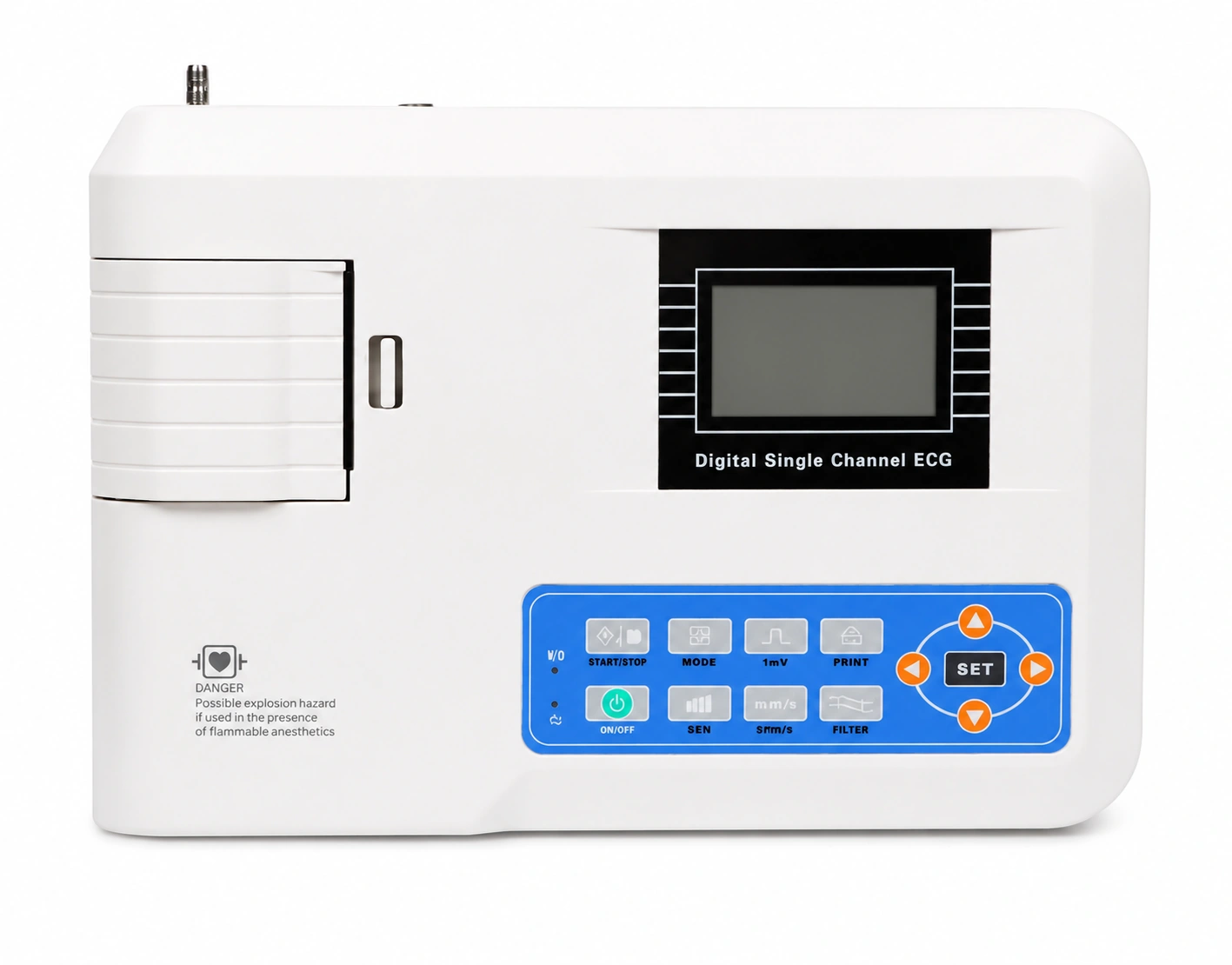

Contec ECG 100G (Single Channel)

Features:

• Large LCD display waveform and data
• The high-resolution thermal printing array system
• Frequency response is as high as 150 Hz
• Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
• High-resolution digital filter inhibits baseline drift without affecting ECG waveform
• Floating input circuit meets IEC safety standard
• Rechargeable battery supporting more than 50 patient examinations
• Internal software: GB, FR, IT, ES, DE, TR



Specifications:

• Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
•  Lead Standard 12 leads
•  Input way: Floating and defibrillation protection
•  Patient leak current: <10µA
•  Sampling rate: 1000Hz
•  A/D conversion: 12bit
•  Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
•  Time constant: >3.2s • CMRR: >60dB, >100dB(Add filter) • Enduring polarization: voltage ±500mV
•  Noise level: <15µVp-p Dispose Wave Data
• EMG interference filter 35Hz (-3dB)
•  AC filter 50Hz/60Hz (=20dB) Waveform output
•  Recording way: Thermal printing system
•  Recording paper: 50mm(W)×20m(L)
•  Sensitivity: 5, 10, 20mm/mV
•  Paper speed: – Auto-record: auto leads changing – Rhythm record: 25 mm/s, 50 mm/s – Manual-record: 25 mm/mV, 50 mm/mV Power supply
•  AC: 110-220V, 50/60 Hz
• DC: 7.4V, 3700 mAh rechargeable lithium-polymer battery Fuse
•  2 pcs f5×20mm AC time lag; T250mA/250V(Power Supply:220V)
•  Size 315 x 215 x 77 mm
•  Net Weight 2.25 kg

In the box:

• ECG cable – 1 set
• Limb electrode clamp – 1 set
• Chest electrodes – 1 set
• Ground wire
• Power connection
• Paper roll

Additional information

Weight	2.25 kg
Dimensions	31 × 21 × 77 cm
